Dell Hybrid PDU AP6120 100-120VAC 16A 7x C13 2x C19 7T521 5T437 Free Shipping

Manufacturer: N/A
SKU: N/A
Price: $40.00
This item is in stock
Quantity:

SquareTrade Seal Member
SquareTrade Seal Member
SquareTrade © AP6.0



Power Distribution Unit AP6120 16-A hybrid PDU

Output - 100-120VAC 2x C19 Connectors & 7x C13 Connectors, 100-120 Volts AC, 16 Amps

Input - 100-120VAC L520-P twist and lock input to C19 Cable plugs into C20 connector on PDU. (fits L5-20R receptacle)

  • 100-120 volt PDU for Dell 4210, 2410, 24U, or 42U rack.
    • 0U installation or 1U rackmount options
    • PDU snaps into place on sides of rack for 0U installation.
    • 2x C19 connections for high wattage rack components
    • 20 Amp breaker & 15 amp breaker
    • Maximum Power Rating: 16A
  • Input -
    • 100-120 volt AC, 50/60 Hertz. Single Phase.
    • L5-20P plug, three prong twist & lock connector to IEC 60320 - C19 cable.
    • IEC 60320 - C20 input on PDU.
  • Output
    • 100-120VAC
    • 9 outlets.
    • 2 IEC 60320 - C19 connectors on front (16A)
    • 7 IEC 60320 - C13 connectors (5 front, 2 back) (15A)
  • Typical Use:
    • From wall or UPS to server
    • From higher amperage PDU to server
  • Size - 3.66 x 1.72 x 17.25 Inches, 7.34lbs, shipping weight is 12.5lbs
  • Dell part numbers 9T552 (kit), 3T765 (PDU)
  • Condition of unit - used or reboxed
  • Electronics are fully functional.
  • 90 warranty from SCSISTUFF.com
  • NO Dell/APC warranty is available. .

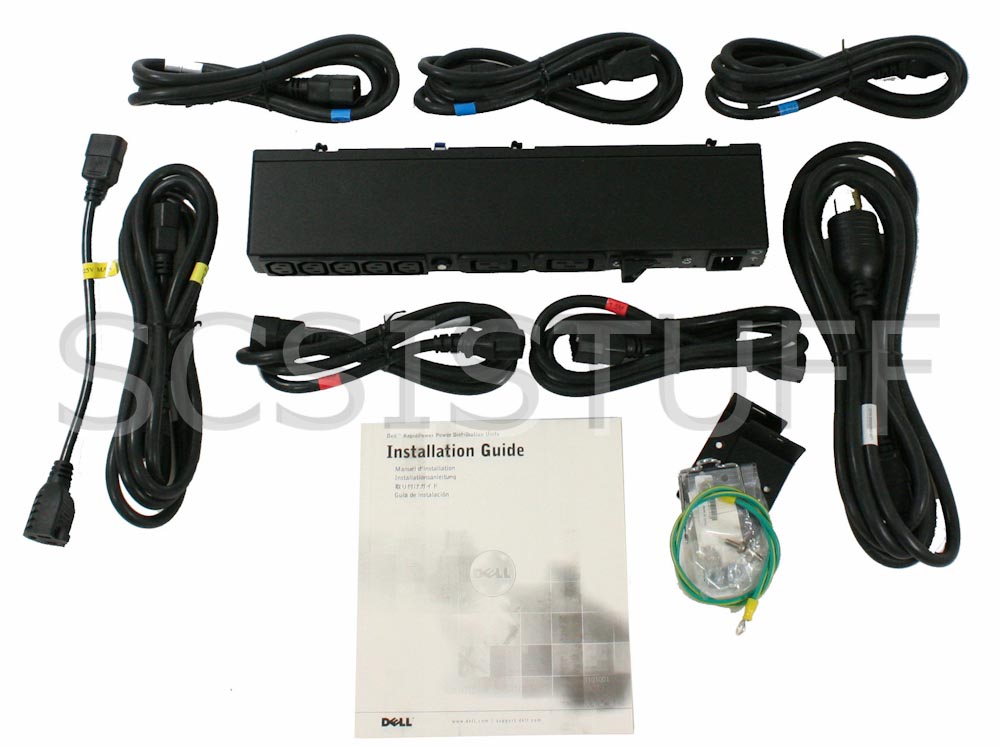

Package includes:
* PDU AP6120 kit with accessories & power cables of various lengths 5 ft. - 8 ft (IEC 320 C13 to IEC 320 C14).
* Free ground shipping to continental United States. weight 12.5 pounds.
